20 Foot / 40 Foot Side Loader Trailer With Hydraulic Lifting System

Name: 20 Foot 40 Foot Side Loader Trailer With Hydraulic Lifting System
Brand: FUDENG Brand
Price: 1 USD

Brand Name : FUDENG Brand

Model Number : Side loader trailer

Certification : CE/SGS/ BV/ADR/dot

Place of Origin : Shandong China(Mainland)

MOQ : 1 Unit side loader trailers

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 Units per month

Delivery Time : 20-30 work days after deposit

Packaging Details : Shipping by the Bulk cargo

Axles : BPW/FUWA/Chinese brand

Function : Loading 20ft 40ft Container

Load capacity : 30-80Tons

Power source : Power Take Off Or Diesel Engine

Key word : Side loader trailers

Brand : FUDENG

Size : Customized

Operation : Remote Control And Manual Operation

Price : negotiation

Contact Now

Hydraulic Lifting Container Carrier Trailer/20FT 40FT Side Lifter Loader Chassis Truck.

20ft &40ft Container side loader truck is superstructure designed to be fitted onto a Sino Truck truck chassis. The 20ft&40ft Container side loader truck is the lightest and most easily maneuverable side loader in the world. with its compact structure and most easily maneuvrable side loader in ther world. Excellent for use in narrow places an d where 20ft containers are dominating.

Side loader trailers Feature:

1) Reinforced main beam and side beam to ensure high loading.
2) Adopting good brand crane with advanced technology
3) Good quality axle, tyre and others parts

Specification:

Item	Parameters
Max. lifting capacity kg	37000kg
Max. working range	4000mm
Max. stabilizer outreach	3200mm
Curb mass	14500kg
Mass of sidelifter	7250kg
Maximum gross mass	40000kg
Outline dimension of semi-trailer(L×W×H)	14100×2500×4000mm
Outline dimension of sidelifter(L×W×H)	1020×2500×2490mm
Wheel base	8000+1350+1350mm
Track(front axle/rear axle)	1820/1820/1820mm
Front overhang / Rear overhang	-/2370mm
Approach angle/Departure angle	-/13°
Function	Transport 220ft and 140ft container
Main beam	The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm.
Loading weight	40T
Axle Brand	FUWA 13Ton Axle
Axle Number	Three
Container twist locker	12 Screw type
King pin	50mm/90mm removeable

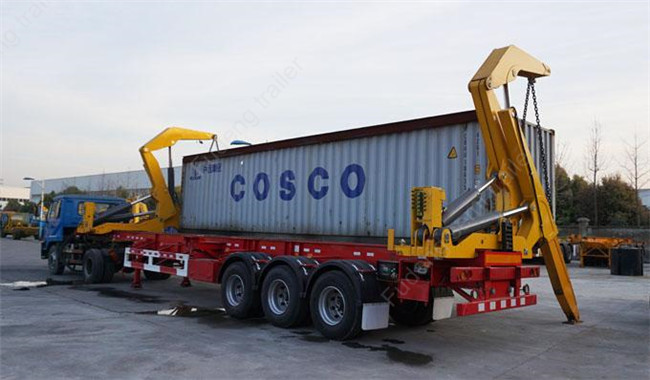

20&40ft Side loader trailers.

20 Foot / 40 Foot Side Loader Trailer With Hydraulic Lifting System

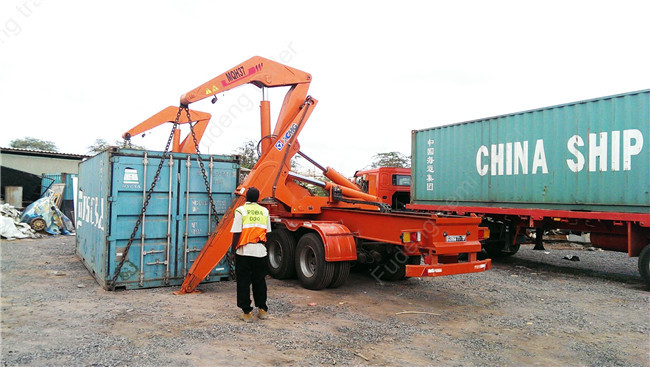

40ft Side loader trailers.

20 Foot / 40 Foot Side Loader Trailer With Hydraulic Lifting System

29Tons Side loader trailers.

20 Foot / 40 Foot Side Loader Trailer With Hydraulic Lifting System
