4 axle 80ton side wall semi trailer with mechanical suspension

4 axle 80ton side wall semi trailer with mechanical suspension

Feature:

Capable of rough road condition:international standard heavy duty chassis and running system applied to cope with rough road condition;

Light design:high tensile steel material and advanced design to achieve lower weight with high carrying capacity,reduce operation cost;

Options:twist locks,dropside pannels,sider fenders and bulk bead(front wall)

Specification

Tare Weight:                         About 8.5T

L*W*H:                                 13000×2600×1500(mm)

Loading Capacity:                 60T

Axle:                                     4 axle 13T,16T brake pads

Landing Gear:                      28Ton

Tire :                                    11.00R20 (16 units)

Suspension:                         Mechanical Suspension

LeafSpring:                          90mm(W)×16mm(Thickness)×10(Layer)

Kingpin:                                50# or 90#

Main beam Height:               500mm, upper plate is 14mm, down plate is 16mm

Brake system:                       4 axle Synchronous,8 big air chamber

Container lock:                     12 Unites

Tool box:                               One piece

Electrical light:                       24V

Color :                                   As customer’s choice

Spare Wheel carrier:            1 pcs

Painting:                               Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2                                                coats of final paint

Detail

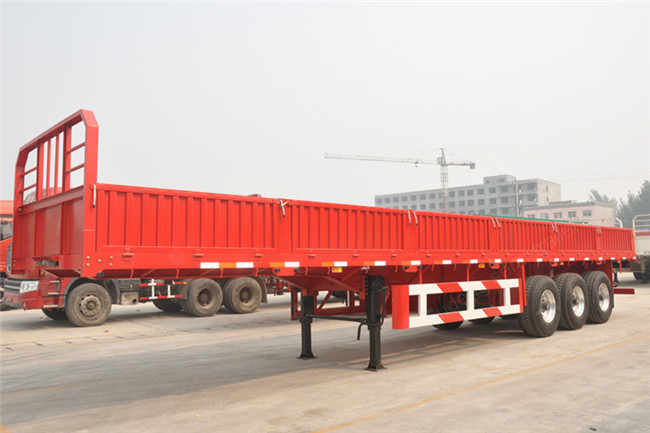

3 axle side wall semi trailer

2 axle side wall semi trailer

This is a photo comes from the customer, after several years of using , theflatbed trailer with side wall are still in a good condition .

Welcome your inquiry for the side wall semi trailer from our company .
