40 Feet Flatbed Container Trailer For 20&40ft Containers Transport

  • 1
  • 2

Brand Name : FUDENG Brand

Model Number : Flatbed container trailers

Certification : BV,SGS, CNCA, CIQ .etc.

Place of Origin : Shandong China(Mainland)

MOQ : One Unit Flatbed container trailer

Payment Terms : L/C, D/A,, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500Units Per Month

Delivery Time : 20days after deposit

Packaging Details : nude package for Flatbed container trailers shipping by 40ft containers and Bulk cargo transportation

Application : Carry Container, Hoses, Cement Bags And Other Goods

Axles : Fuwa/BPW/Chiness brand

Size : 12,500*2,500*1,560 mm Or customized

Key words : Tri Axle Trailers , 40ft Flatbed Trailers , 40ft Container Semi Trailers

Suspension : Mechanical Suspension Or Air Suspension

Payload : 60Tons

Container locks : 12 Units

Landing Gear : JOST 28 Tons

Price : negotiation

Contact Now

4 Axles 40ft flatbed container trailers load capacity 30-80Tons with strength chassis



Flatbed container trailers Distinguishing Features:

1. Steel structure: Steel frames are built with top-class hot rolled or rolled steel plate, automatic welded longitudinal beam and adopting advanced sanding and painting process as preliminary treatment.

2. Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension; Mechanical suspension.

3. Lamp assembly uses advanced LED light, top quality PC and cast wire harness in dual circuit design.

4. Automatic tire inflation and pressure sensor system is optionally available for enhanced safety and better fuel economy.

5. State-of-the-art detection devices: Components, hardness, and phase of metal are analyzed to ensure the standards of processed material; Weld seam defects, paint thickness and adhesuveness are checked and amended to guarantee the quality of finished products.



3 AXLE FLATBED CONTAINER TRAILER
DIMENSIONS
Tare weight 7000kg
Size 13000mm*2500mm*1650mm
Payload 60Tons
Main beam Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm
Side beam 16# channel steel(Q235)
Cross member 10# channel steel(Q235)
Floor 3mm checkered plate
Axle 3 axle FUWA brand 13T
Suspension Mechanical suspension
Leaf spring 10pcs*90*13mm
Tire 12R22.5 double star brand 12pcs
Wheel rim 9.0-22.5 better brand 12pcs
Kingpin  2” bolt-in king pin
Landing gear Heavy duty landing gear 28T
Twist lock 12pcs
Braking system WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Light LED 8 side lights and 2 rear lights 2 width lamp
Painting Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories two standard tool box,one spare tire carrier,one crank,one shaft headwrench,four side light,two rear light
Date of delivery 20 workdays after we received 30% of contract value T/T down payment.

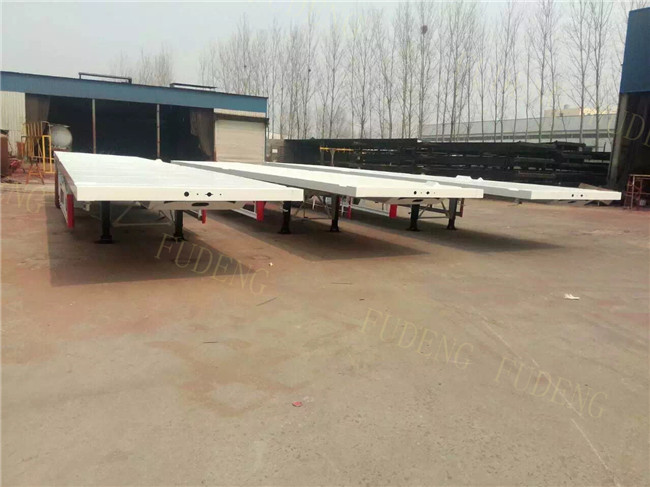

3 Axles 40ft Flatbed container trailers.
40 Feet Flatbed Container Trailer For 20&40ft Containers Transport

3 Axles 50Tons Flatbed container trailers.
40 Feet Flatbed Container Trailer For 20&40ft Containers Transport


Flatbed container trailers container locks.

40 Feet Flatbed Container Trailer For 20&40ft Containers Transport



Welcome to visit our factory!
