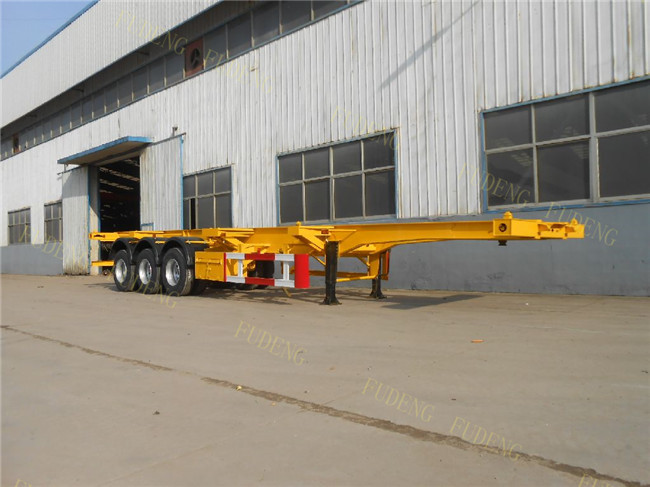

3 Axles 40 ft Skeleton Container Trailer 20 ft Skeleton Semi Trailer Container Chassis
Chassis container trailers advantages:
1. The series vehicle use through-going beam structure, has frame structure with flat type
and goosen neck type, also has high integral strength, small weight, beautiful appearance,
safe and reliable operation.
2. the series vehicle use advanced manufacture technology , makes automatic submerged
-arc welding for vertical beam, use shot blasting treatment for intergral frame, removes
welding stress effectively.
cement trailer also called bulk cement trailer, cement bulker trailer, cement trailer, bulk cement
semi trailer,cement truck powder semi trailer and bulk cement tank semi trailer.
FUDENG optional: 40ft skeleton container trailer, 20ft skeleton container semi trailer, 40ft Extendable skeleton chassis trailer, 4 axle chassis container trailer, , skeletal container trailer,12.5m container truck trailer, Skeletal cng tube tank trailer, Chemical tank skeletal container truck and trailer,etc.
Specification:
| Model Number | CITC5187T |
| Place of Origin | Shandong, China |
| Rated Load | 60000 kg |
| Tare Weight | 8000 kg |
| Wheel Base | 1310 (mm) |
| Tyre Specifications | 12R22.5 |
| No. Of the Tyres | 12 Pcs |
| Axle Brand | 13Tonnage capacity |
| No. Of the Axles | 3 |
| The traction pin | 2’ or 3.5’ interchangeable |
| Suspension | Heavy Duty Mechanical Leaf Spring Suspension |
| Spare tire carrier | 1 sets |
| Landing Gear | 28 ton capacity |
| Floor | 3mm management plate |
| Tool Box | 1 box of standard tools |
| Outside Dimensions | 12500x2480x1580 (mm) (LxWxH) |
| Twist Locks | ISO 12sets container locks |
| Color and Logo | Depends on the buyer’s requirement. |
| Material of the Main Beam | Automatic submerged arc welded |
| Main beams Q345B/ST52-3, through cross beams Q235 |
| Body material Q235B manganese plates, automatic submerged arc welded |
| Brake System | Dual Lines Braking System With Automatic Air Chambers |
| Brake Air Chamber | Four double and two single chamber |
| Electrical System | 24V, 7core socket, lights according to European standards. |
Container chassis trailers models.

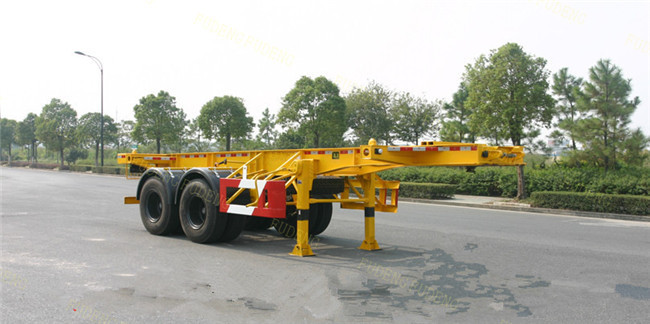

2 Axles Chassis container trailers.
