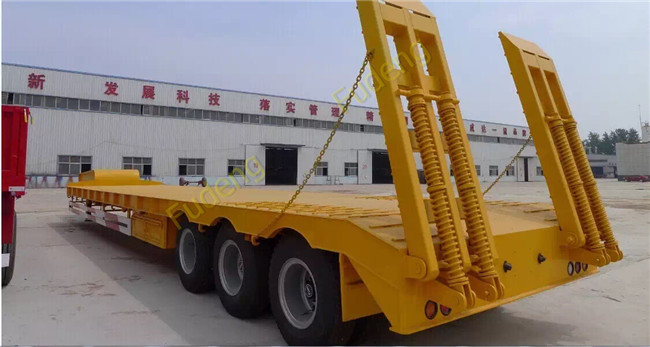

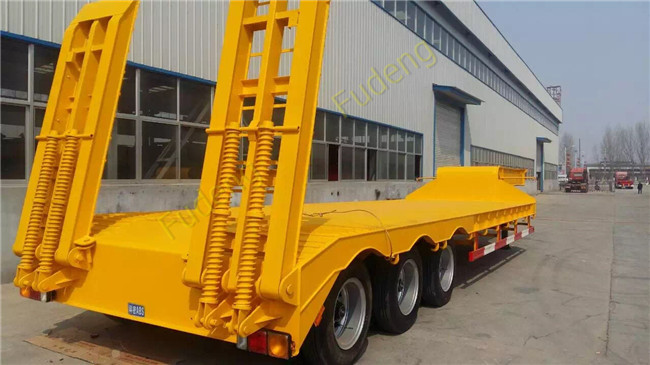

Tri-axle 60T-80T carbon steel low bed semi trailer for steel coil transport
1. The hydraulic low bed trailer use through-going beam structure, has frame structure with flat type and goosen neck type, also has high integral strength, small weight, beautiful appearance, safe and reliable operation.
2. The tri axle low bed semi trailer use advanced manufacture technology, makes automatic submerged-arc welding for vertical beam, use shot blasting treatment for intergral frame, removes welding stress effectively.
Lowbed trailers After-Sales Service:
1). Traning of trailer operating and normal maintenance .
2). Regularly callback to know the vehicle's working status.
3). Supply the service of regular repair.
4). Solve the customer’s advisory.
5). The overseas engineers are always ready to deal with unexpected needs.
6). 24 hours hotline.
7). CKD and SKD are available.
8). Faster, better and more professional.
LOW BED TRAILER Specification:
| Trailer Model | 3 Axle low bed Semi Trailer |
| Model Number | SCD9400TDP |
| Total size | 13000*3000*1650mm |
| Working size(LxWxH) | 9000*3000*1300mm |
| Curb Weight(KG) | 7000 |
| Loading Weight(KG) | 60000-8000KG |
| Departure Angle | 16 |
| Axle Brand | 3*13 ton FUWA brand |
| Axle Number | Three |
| Wheelbase(mm) | 8580+1310+1310 |
| Suspension system | Mechanical Leaf Spring Suspension |
| Leaf Spring | 90(W)mm*13(Thick)mm*10 Layer 10/10/10 leaf spring suspension |
| The material of Main beam | Q345B carbon steel,the height of the beam is 500 mm, upper plate is16mm,down plate is 18mm, middle plate is 10 mm. |
| Side Beam Q235 | 16# channel steel |
| Platform plate | 3mm Diamond plate |
| Tire Type and quantity | 11.00R20 12units Triangle Brand |
| Ladder | With Ladder |
| Traction Pin | 2” or 3.5” |
| Spare Wheel Bracket | 2 pieces |
| Tool Box | 1 Standard |
| Landing Gear | 28Ton standard |
| Brake system | WABCO RE6 relay valve ;T30/30 spring brake chamber; 40L air tanks Dual Line braking system |
| Brake air chamber | Six double chamber |
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. |
| One set 6-core standard Cable. |
| Painting | Color as customer’s requirement |
| Packing | Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final paint |
3 Axles low bed semi trailers.
80Tons Low bed semi trailers.
Welcome to visit our factory!
