3 Axles 60T Low Bed Semi Trailers For Excavator and large equipments Transportation
1. The hydraulic low bed trailer use through-going beam structure, has frame structure with flat type and goosen neck type, also has high integral strength, small weight, beautiful appearance, safe and reliable operation.
2. The tri axle low bed semi trailer use advanced manufacture technology, makes automatic submerged-arc welding for vertical beam, use shot blasting treatment for intergral frame, removes welding stress effectively.
Lowbed trailers After-Sales Service:
1). Traning of trailer operating and normal maintenance .
2). Regularly callback to know the vehicle's working status.
3). Supply the service of regular repair.
4). Solve the customer’s advisory.
5). The overseas engineers are always ready to deal with unexpected needs.
6). 24 hours hotline.
7). CKD and SKD are available.
8). Faster, better and more professional.
LOW BED TRAILER Specification:
| Tare Weight | About 8.5-13T |
| Dimension | 12000mm-18000mm*2500mm-3500mm*3050mm Please indicate the working platform height and length. |
| Loading Capacity (T) | 60T |
| Axle | 13 T/16T, FUWA /BPW Brand |
| Rim | 6.5-20/7.5-20/8.00-20/8.5-20 |
| Tire | 8.25R20/10.00R20/11.00R20/12.00R20 |
| Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
| Main beam | Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel . |
| Side beam | 16mm -25mm channel steel ( Material is Q235steel ). |
| Ladder | Manual or Hydraulic type |
| Gooseneck | For choose |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand);Two pieces of 45L air tanks |
| ABS | Optional |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
| Valve | WABCO valve |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO |

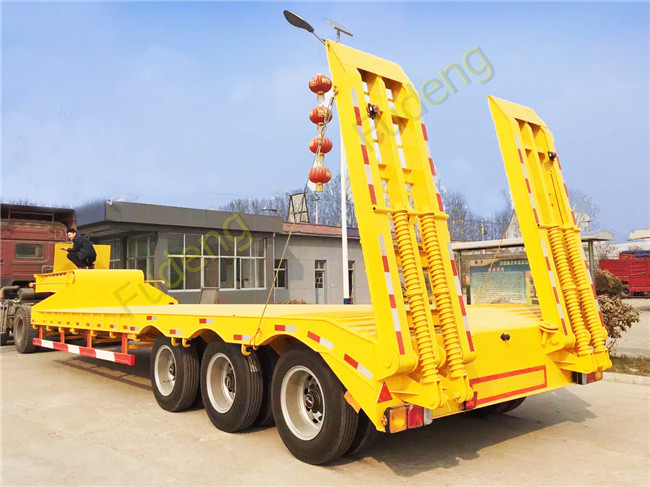

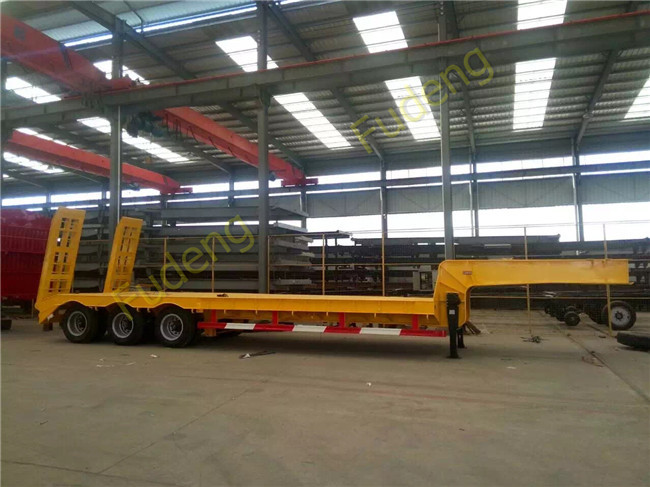

3 Axles low bed semi trailers.
60Tons Low bed semi trailers.
Welcome to visit our factory!
