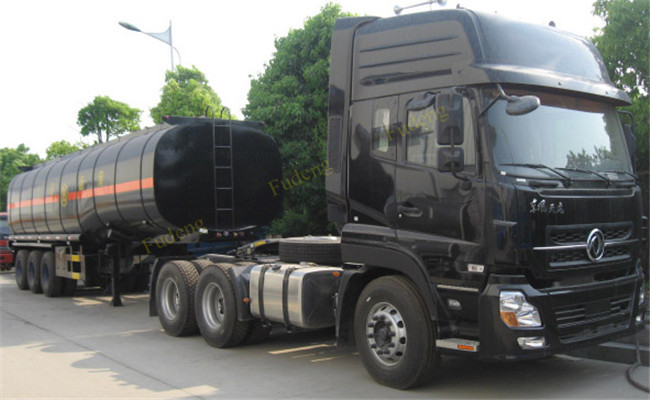

3 axle fuel tanker , bitumen asphalt tank trailer with volume optional
Our manufacturing equipment advantages:
1 . Flat butt automatic welding machine(splice plate machine), to ensure the steel is flat, and seam is welded by one side in shape by two sides.
2 . Automatic flat board turning-over machine, it is used in the procedure of the board turn-over after being welding. With a combination of the flat butt automatic welding machine, make the safety and efficiency.
3 . Tank rolling machine, the tanker body is shaped by one time, all of which features the machine good in appearance, efficient in production.

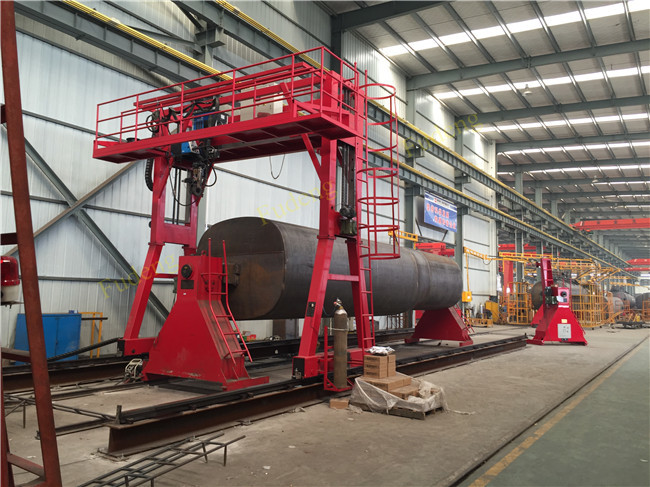

4 . Automatic girth welding machine for irregular shape tank. The welding seams is good in appearance, high in welding quality and production efficiency.
5 . Professional paint workshop for tanker trailer, from sand blasting, prime to top painting,
guarantee the tanker body of brightness and the adhesion of paint.
Specification
| Liquid Bitument/Asphalt Transport Semi Tank Trailer |
| Wheel Base | 1310 (mm) |
| Tyre Specifications | 12R22.5 |
| No. Of the Tyres | 12 pcs ISO Certificated |
| Axle | 13Tonnage |
| No. Of the Axles | 3 pcs |
| Colour | As the buyers’ request |
| Tanker side thickness | 5mm carbon steel |
| Net Weight | 12 T |
| Spare tire carrier | 1 set |
| Electrical System | 24V, 7core socket, lights according to European standards. |
| Tool Box | 1 box of standard tools |
| Heat Preservation System | Electrical or Diesel |
| King Pin | 2’ and 3.5’ interchangeable pin |
| Brake System | Automatic air brakes Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber. |
| Accessory | One tooling boxes ,Two spare tire carrier, Two fire extinguisher |
| Landing Gear | 28 ton capacity Fuwa with static capacity of 80T |
| Suspension | Heavy duty mechanic suspension with 10 pcs leaf spring |
| Material of the Main Beam | Automatic submerged arc welded Main beams Q345B/ST52-3, through cross beams Q235 Body material Q235B manganese plates, automatic submerged arc welded |
The Above is our standard specifications only, we could customize as your actual demands/dimensions~!
Workshop
1.Small Order accepted(MOQ=1 unit);
2.Offer professional technical support;
3.Recommend the best shipping ways;
4.Warranty:1 year for all specifications,life-time for main beam.
One coin =one quality,we assure you the best quality&price,and aim to build a
long-term cooperation bettwen us.
