4 axles low bed semi trailer low loader 80 ton trucks and trailers

Product Categories

Shandong Fudeng Automobile Co, Ltd.

Contact Now

4 axles low bed semi trailer low loader 80 ton trucks and trailers

Name: 4 axles low bed semi trailer low loader 80 ton trucks and trailers
Brand: Fudeng
Price: 1 USD

Brand Name : Fudeng

Model Number : SDFD1702 low bed trailer

Certification : CE, ISO, CCC, SGS, ADR

Place of Origin : Shandong, China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 600 sets per month

Delivery Time : 25-40 days after 30% deposit

Packaging Details : Paint and wax spraying

Price : negotiation

Material : Carbon Steel

Usage : Transport heavy machine

Color : White, yellow, red, green, blue customized

Pattern : Fudeng logo or as customer's request

Suspension : Mechanical or air suspension

Capacity : 30-100 ton available

Axle : 2 or 3 or 4

Landing gear : Standard 28 Ton

Contact Now

4 axles low bed semi trailer low loader 80 ton trucks and trailers

As one of the company's most successful trailer ranges, our low loaders are widely recognized for their strength and durability. Models include the 30 Ton two axles to 100 ton four axles. Our company also manufactures multi axle low boy trailer to carry more than 100 tons which provides flexibility in transportation.

General
Overall Dimension	14960mm3000mm3300mm
Flatbed Dimension	8000mm*3000mm
Tare Weight	9630kg	Pay Load	100 ton
King Pin Setting	450mm	Rear Overhang	1870mm
Wheel base	7950mm+1305mm+1305mm+1305mm	Loading Surface Height	1320mm
Track	2160mm
Running Gear
Suspension	4 axle 8-pcs leaf spring suspension with equalizer beam
Tires	311.00-20, 11.00R20,12.00-20,12.00R20 12units
Axles	AQ,FUWA, BPW or STEYR axle, 13T capacity
Brakes	Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake
Under Frame
Main Beam	I shape, Mild Alloy (16Mn) by Automatic submerged arc welding.
Cross Beam	Mild Alloy Q235, 16# channel beam
King Pin	Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled
Landing Gear	Single side operation or double side operation, Static capacity 30Ton
Flatbed Floor	Checkered sheet, thickness 4mm
Rear Ladders	Spring power-assisted
Electrical & Paint
Lights & Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light

Low Loader range has been designed primarily for heavy construction machines, but depending on user requirements can be adapted to suit commercial and agricultural vehicles when necessary.

4 axles low bed semi trailer low loader 80 ton trucks and trailers

Welcome to contact us to get more information.

Product Tags:

Low Bed Trailer

Lowboy Flatbed Trailer

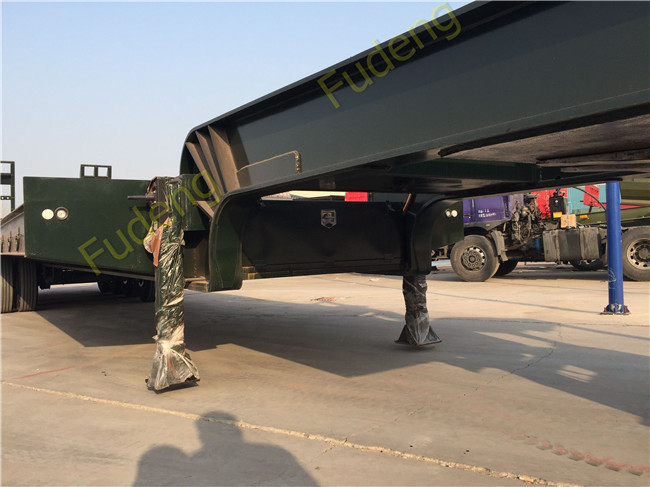

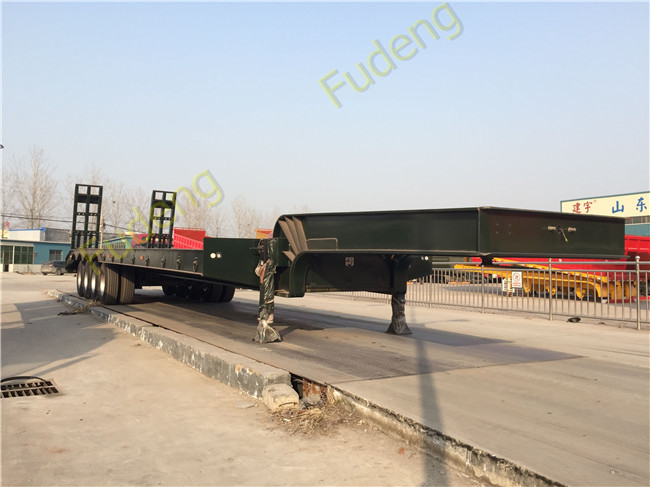

4 axles low bed semi trailer low loader 80 ton trucks and trailers Images
