Lowbed Trailers Lowboy Semi Trailer With Ramp Tri-Axles 60 Tons for sale

Name: Lowbed Trailers Lowboy Semi Trailer With Ramp TriAxles 60 Tons for sale
Brand: Fudeng
Price: 1 USD

Buy cheap Lowbed Trailers Lowboy Semi Trailer With Ramp Tri-Axles 60 Tons for sale product

Brand Name : Fudeng

Model Number : SDFD1702 low bed trailer

Certification : CE, ISO, CCC, SGS, ADR

Place of Origin : Shandong, China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 600 sets per month

Delivery Time : 25-40 days after 30% deposit

Packaging Details : Paint and wax spraying

Price : negotiation

Material : Carbon Steel

Usage : Transport heavy machine

Color : White, yellow, red, green, blue customized

Pattern : Fudeng logo or as customer's request

Suspension : Mechanical or air suspension

Capacity : 30-100 ton available

Axle : 2 or 3 or 4

Landing gear : Standard 28 Ton

Contact Now

Lowbed Trailers Lowboy Semi Trailer With Ramp Tri-Axles 60 Tons for sale

Low Loader range has been designed primarily for heavy construction machines, but depending on user requirements can be adapted to suit commercial and agricultural vehicles when necessary.
Lowbed Trailers Lowboy Semi Trailer With Ramp Tri-Axles 60 Tons for sale

Fudeng Low Bed Trailer
Weight	Tare Weight	About 8.5-16.5T
	Max Loading Capacity	50-120 Tons
Specification	Dimensions (mm)	13000x3000-3500x1650 (Standard Or Customized)
	Axle	Number	Three(customized)
		Payload	13T/16T
		Brand	BPW /FUWA/Chinese Brand
	Suspension	Mechanical Suspension/ Pneumatic Suspension
	Rim	6.5-20/7.5-20/8.00-20/8.5-20
	Ladder	Spring/ Mechanical / Hydraulic ladder
	Tires	Tires	8.25R22.5/10.00R20/11.00R20/12.00R20
		Brand	Triangle or Double Coin Brand
	King Pin	Size	2.0’’ or 3.5’’ traction pin
		Brand	JOST Brand2.0 or 3.5 inch(bolted or welded type ) or China famous brand
	Landing Gear	JOST brand D200T or Chinese brand 28Tons28Tons
Frame	Main beam	The height of the beam is 450/500mm,upper plate is 14mm down .
	Bottom platform	3-6mm thick checkered plate
Additional	ABS	Optional
	Light	LED light
Electric System	Electrical equipment 24 Volt, SAE 7 poles
Painting	Sand blasting before painting; 2 coat of anticorrosive primer ; Color as needed

STANDARD FEATURES

· Payload 50,000kg
· Rear Lights on Ramp & Inside Well of Beavertail
· Mudguards Front and Rear
· Parking Brake
· Well in Beavertail
· Sprung Assisted Ramps – 6mm steel plated with Gripper Bars

OPTIONAL FEATURES

· Wide Sprung Ramps – Maximum 720mm
· Hydraulic Ramps – 600mm to 900mm
· 3mm Steel Strips under Timbers for supporting Wheeled Machines
· Cord fastener
· Tool Box – Front / Side
· Colour

Lowbed Trailers Lowboy Semi Trailer With Ramp Tri-Axles 60 Tons for sale

Fudeng low-loaders are considered to be the most robust low-loaders in the market. The hydraulic steering offers excellent manoeuvrability with minimal tyre wear and maintenance costs. The finish and conservation are top quality, the chassis being fully hot zinc sprayed.
Welcome to contact us to get more information.

Product Tags:

Low Bed Trailer

Low Flatbed Trailer

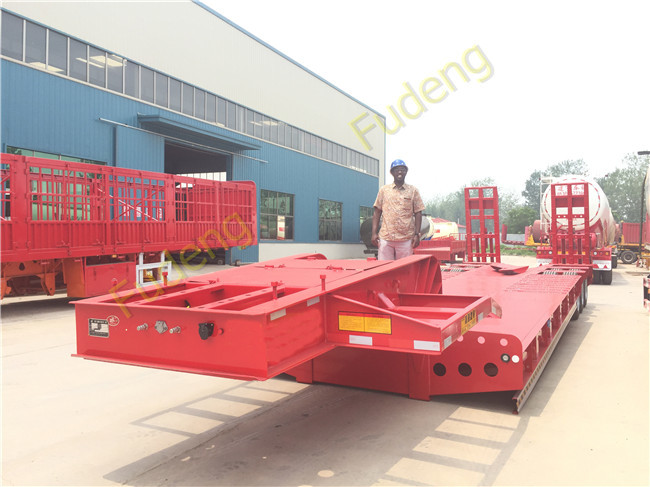

Lowbed Trailers Lowboy Semi Trailer With Ramp Tri-Axles 60 Tons for sale Images
